Silica Extractor Filter Cartridge Replacement

Filter cartridge replacement on a 12-cartridge reverse-jet extractor used for silica-sand extraction. These Harvtec work photographs show the used cartridges, a replacement cartridge before fitting and clean cartridges installed in the extractor.

Discuss your LEV system View the photographs

Equipment: 12-cartridge reverse-jet extractor
Application: Silica-sand extraction
Work: Filter cartridge replacement

The work in photographs

Inside the extractor, before and after.

The photographs show the cartridge condition before the change and the replacement cartridges fitted in the extraction unit.

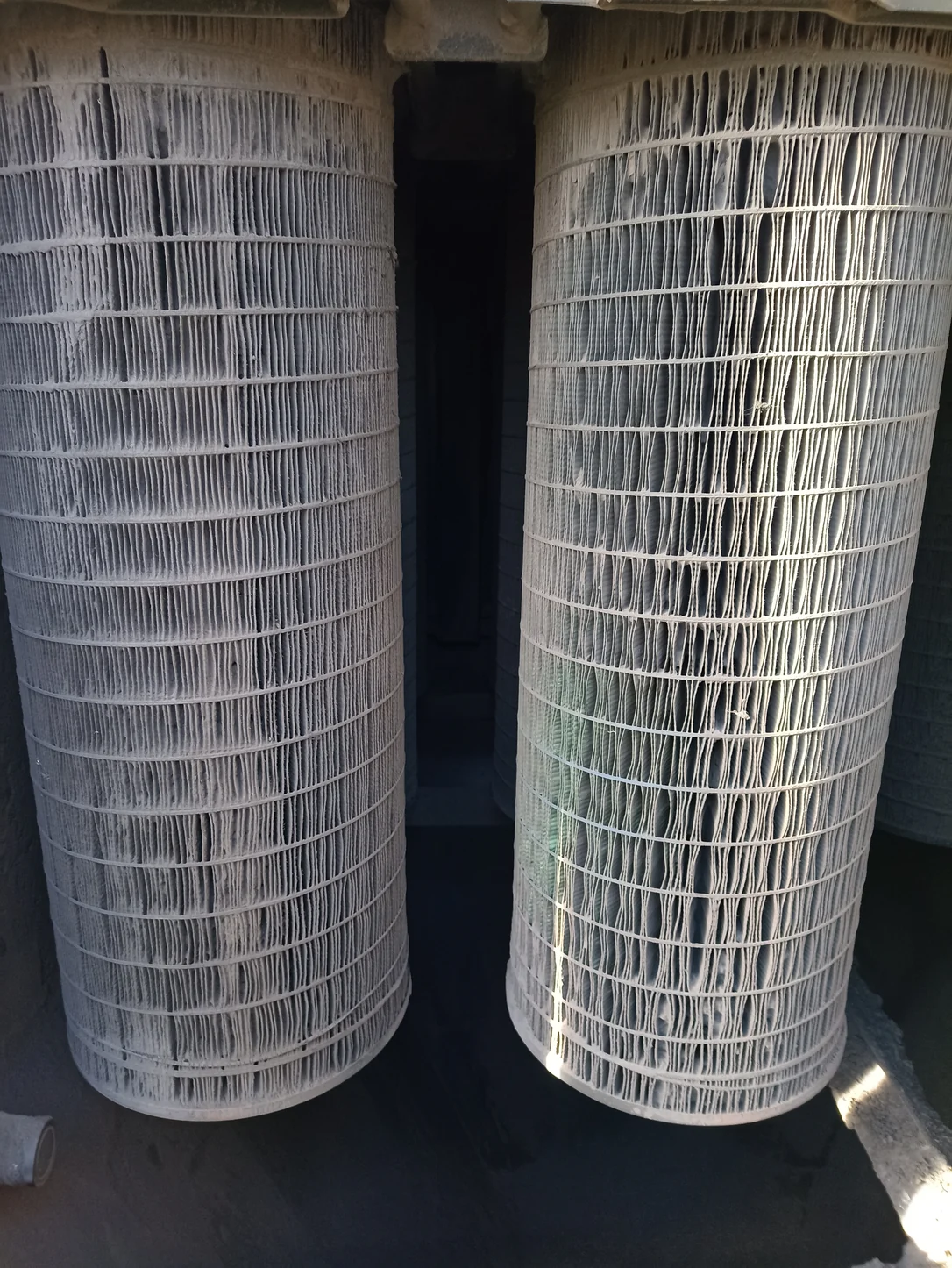

Used filter cartridges inside the silica-sand extractor before replacement — Used cartridges in the extractor before the filter change.

Clean replacement filter cartridges installed inside the silica-sand extractor — Clean cartridges installed in the extractor after replacement.

Harvtec work photographs and equipment details. The example records a cartridge replacement; the photographs alone do not establish airflow or exposure-control performance.

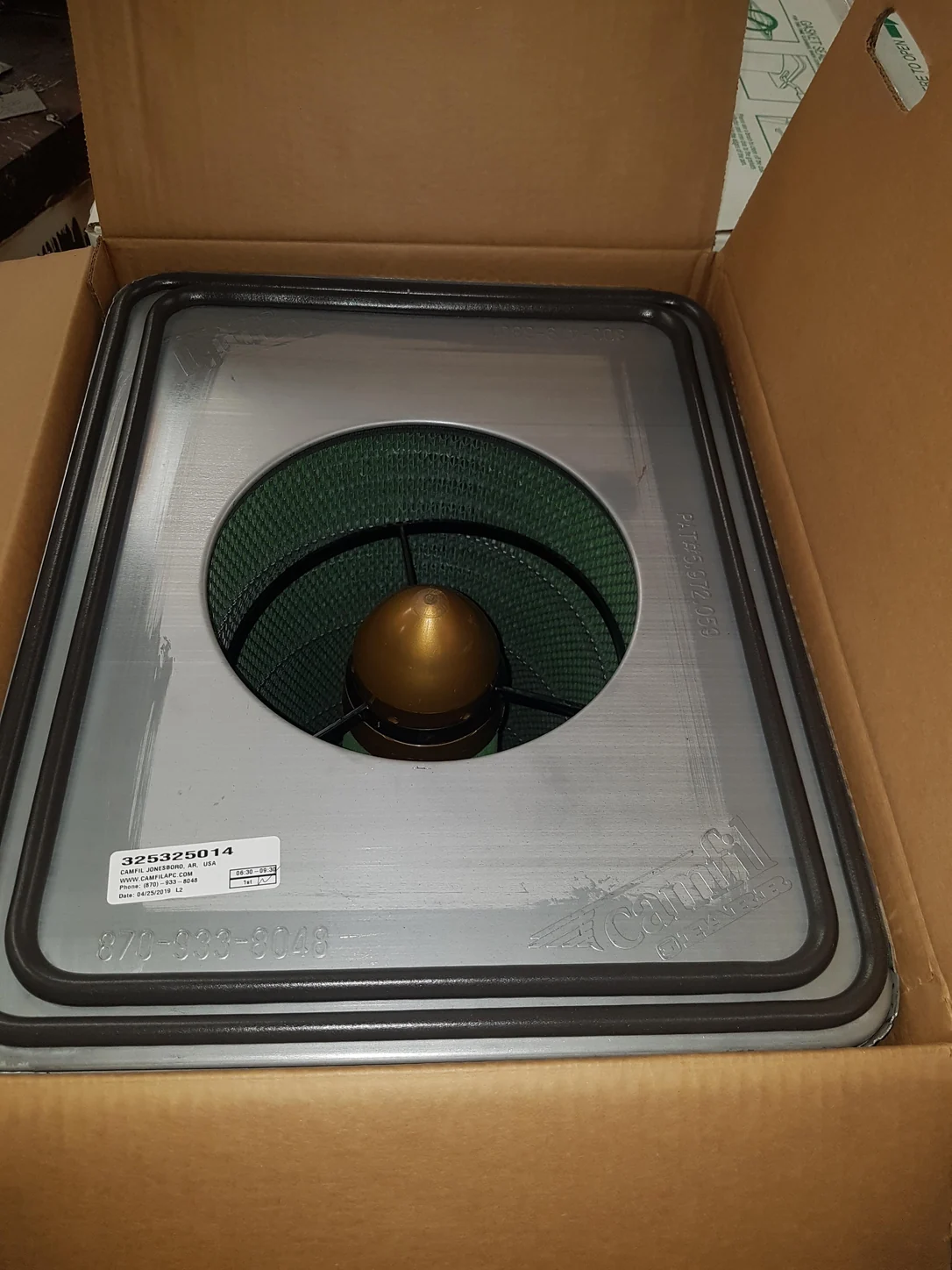

Replacement filter cartridge in its box before installation

Replacement component

The replacement cartridge, ready to fit.

The boxed cartridge shows the replacement component before installation. The cartridge assembly and its sealing arrangement form part of the extraction system, so replacements need to suit the equipment and the process it serves.

For a filter-change enquiry, send the extractor make and model, cartridge details or part numbers where known, the material being extracted and any current maintenance or examination findings. Harvtec can then agree the replacement and access requirements.

LEV support

Support throughout the life of the extractor.

Harvtec’s extraction experience covers installation, repair, refurbishment and ongoing maintenance. Work can include filter replacement, fan and motor faults, controls, damaged components and a planned maintenance programme, with the system and process suitability agreed first.

Thorough Examination and Test can be arranged.

Harvtec can arrange LEV Thorough Examination and Test (TExT) through a competent LEV examiner, with a written examination report. We can also help coordinate preparation, carry out agreed remedials and keep resulting actions and records together.

HSE: LEV examination and reporting

Extraction enquiries

Plan a filter change or extraction repair.

Tell us about the system, its use, the work needed and your site location. We can discuss a one-off job or ongoing maintenance support.
