Silica-Sand Extractor Motor Replacement
A heavily corroded, high-level 16.5 kW motor needed replacing on a silica-sand dust extractor serving a processing and grading plant. With the correct mount unavailable within the job’s time frame, Harvtec produced a CNC laser-cut mounting plate to fit the new motor to the existing extractor.
- Application
- Silica-sand extraction at a processing and grading plant
- Challenge
- Corroded high-level 16.5 kW motor; replacement mount unavailable
- Solution
- New motor with a custom CNC laser-cut mounting plate
Weather exposure had taken its toll.

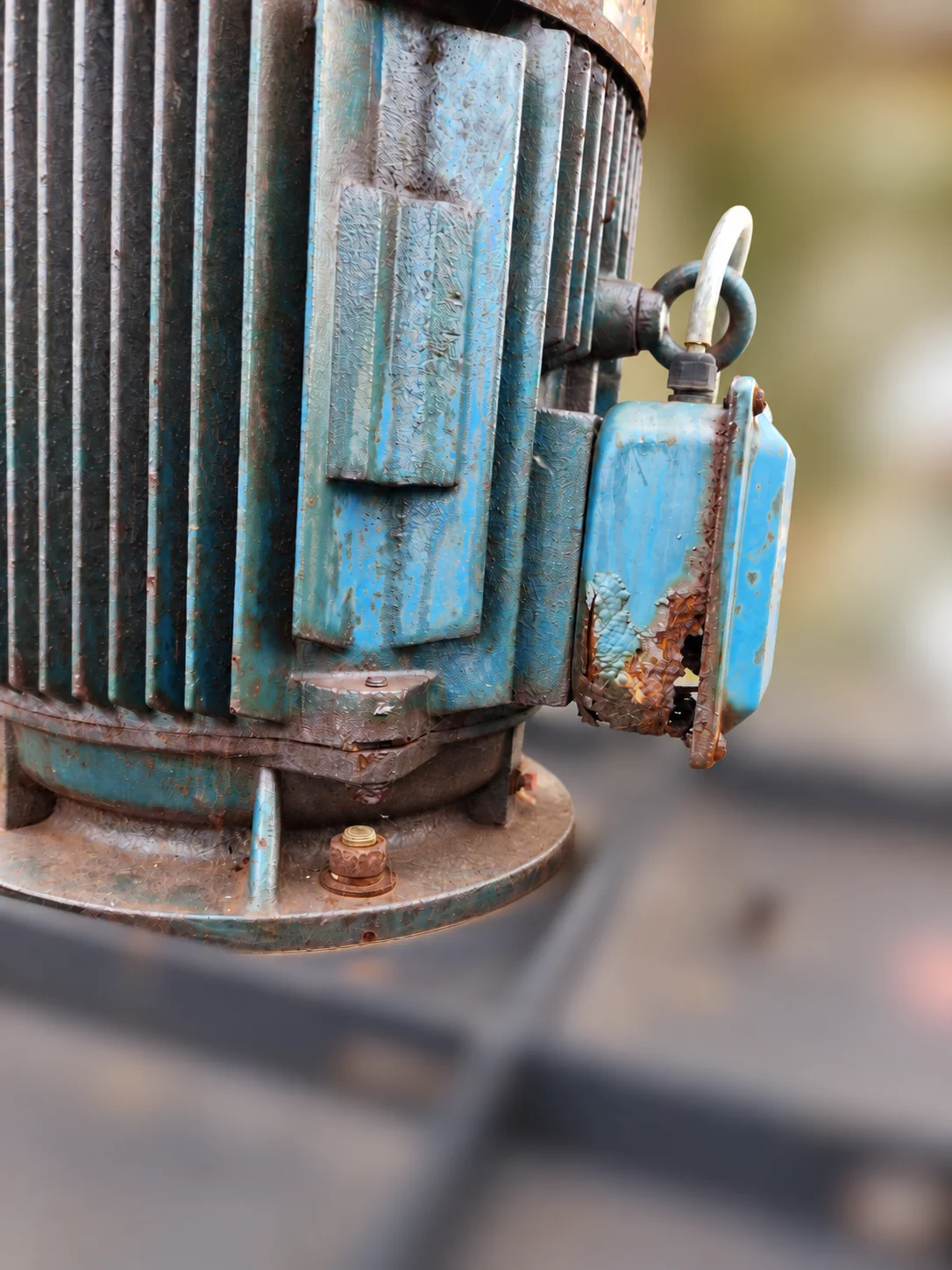

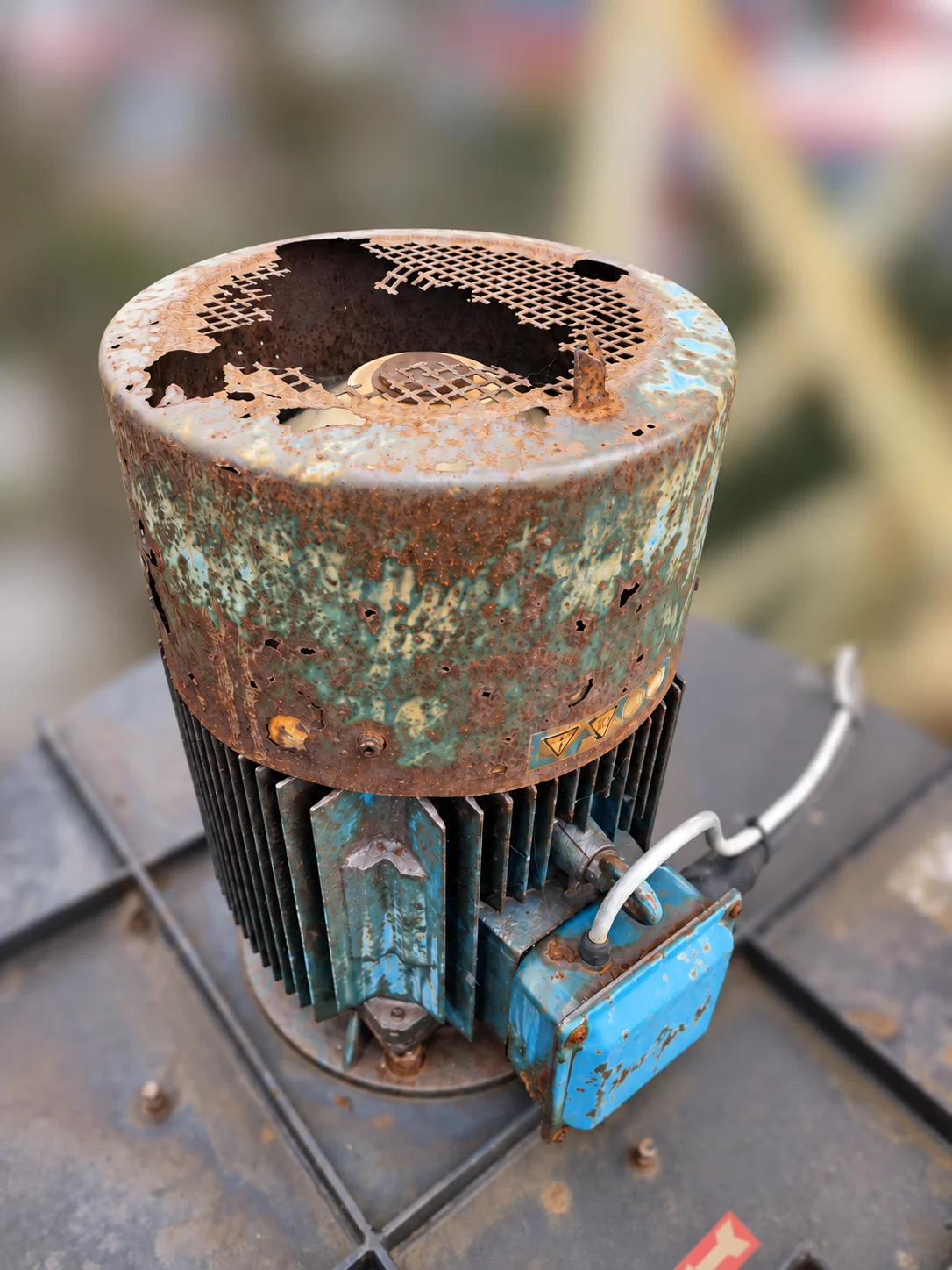

The existing motor was exposed to the elements and had suffered heavy corrosion. The damage was particularly clear around the cooling-fan cover and terminal box, with holes visible in both.
The extractor handled silica-sand dust as part of a processing and grading plant. Replacing its high-level motor meant addressing the condition of the equipment, the access and the mechanical fit of the replacement.
The mounting problem became part of the job.
A replacement motor was available, but the correct mounting arrangement could not be obtained within the time available. Fitting the new motor to the existing extractor needed a custom solution.
Harvtec produced a CNC laser-cut mounting plate and adapted the mounting arrangement so the replacement motor could be fitted. Electrical work, mechanical adaptation and fabrication came together to complete the installation.
The work in photographs
From a corroded motor to the replacement installation.
The old motor’s condition and the new motor fitted to the high-level extractor.
Based on Harvtec’s account of the work and five supplied project photographs. The images show the original motor’s condition, workshop adaptation and the replacement installation.
Through the job
The damage and the replacement fit.
Workshop problem-solving
A custom mount kept the replacement moving.
The mechanical fit mattered as much as sourcing the motor. With the required mount unavailable in time, a custom CNC laser-cut mounting plate provided the connection between the replacement motor and the existing extractor.

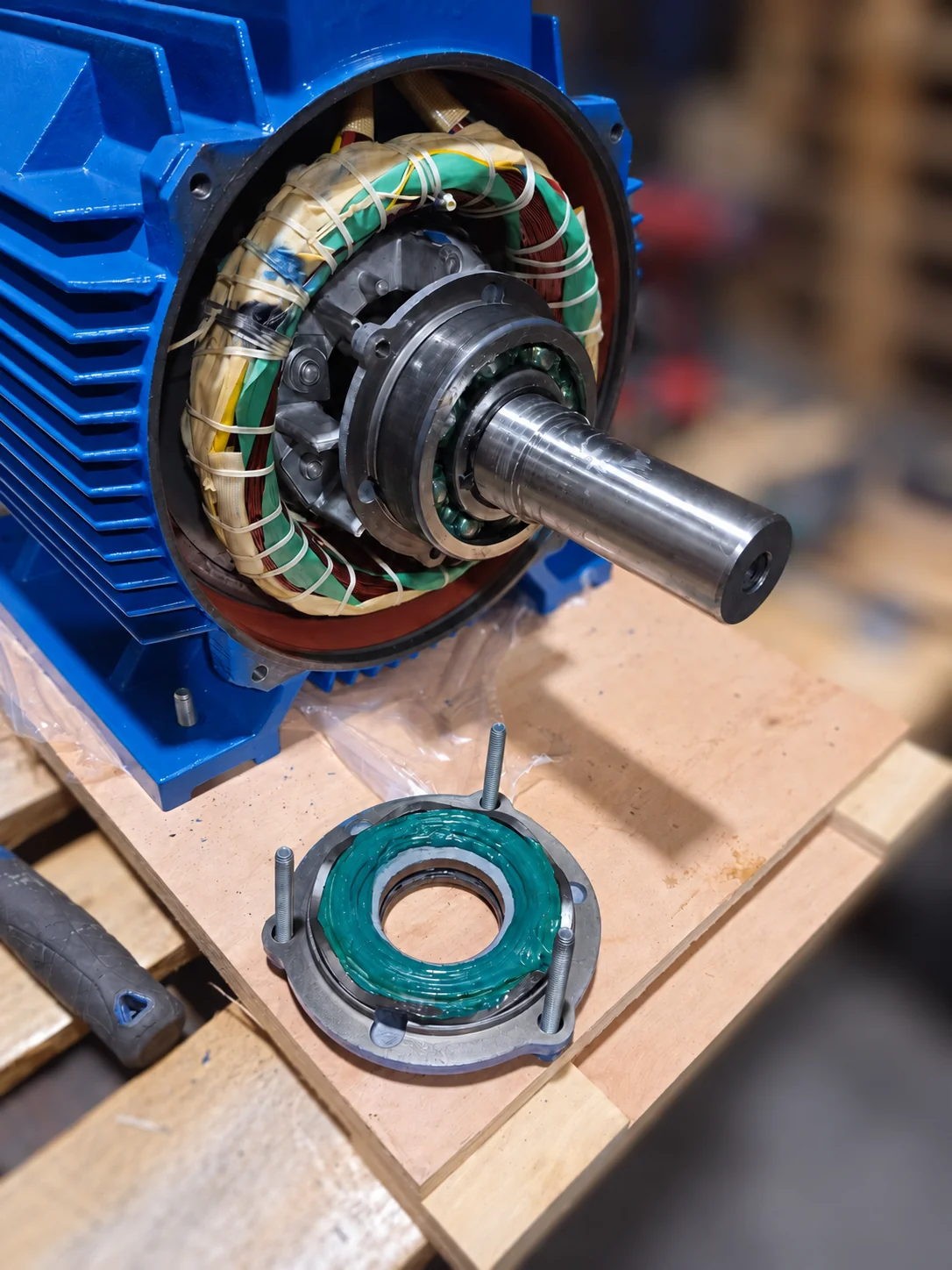

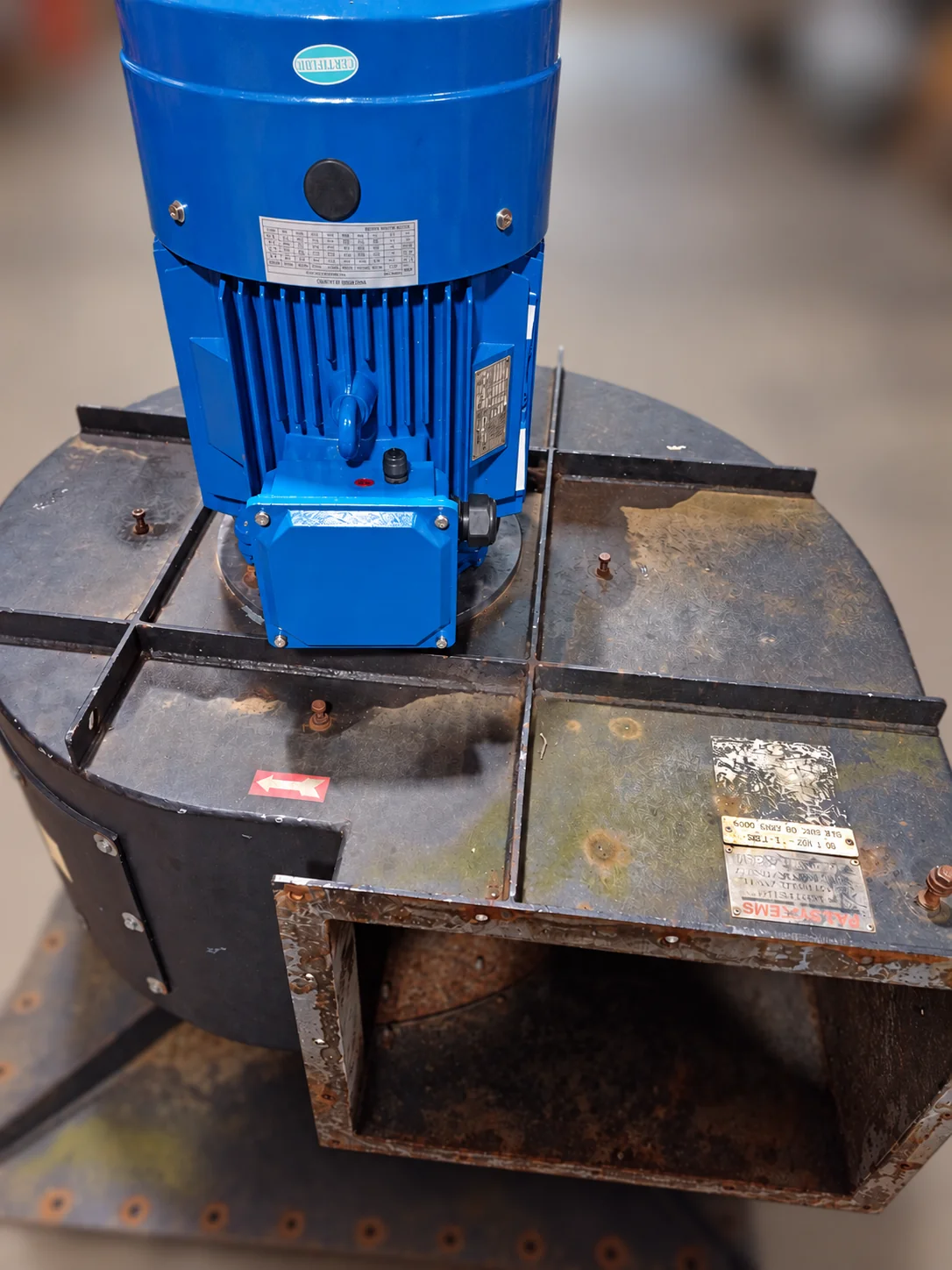

The workshop photograph shows the motor during the adaptation work, with its end cover removed. The fitted photographs show the resulting installation.
The completed work
New motor fitted. Existing extractor retained.
The job brought together replacement of the corroded motor, a custom mounting plate, workshop adaptation and installation at high level. It is a practical example of Harvtec following a repair through electrical, mechanical and fabrication work.
Maintenance and extraction performance.
For exposed fans and motors, covers, enclosures and mountings deserve attention alongside running faults. On a silica-dust system, a motor replacement is one part of looking after the equipment: effective exposure control and any examination requirements need their own competent assessment.
Extraction and engineering enquiries
A motor replacement that needs more than a standard part?
Send the site postcode, process and dust handled, extractor and motor details, photographs of the mounting arrangement, the fault symptoms and any access or timing constraints. We can discuss the repair and any workshop adaptation needed.
